Integrating Oracle Human Capital Management (HCM) and Content and Experience Cloud (CEC)

By: Greg Becker | Technical Architect

OVERVIEW

During the first phase of a recent project we built an employee file repository for a Healthcare client in the Oracle Cloud Infrastructure – Classic (OCI-C) space. A number of services were used including Oracle Content and Experience Cloud (repository), Oracle Process Cloud Service (for filing the documents in a logic structure), Oracle WebCenter Enterprise Capture (for scanning) and Oracle Database Cloud Service (for custom application tables).

During the second phase of the project our clients had a requirement to automatically update metadata values on their content items stored in the CEC repository. They wanted to trigger a change based on events or updates that occur for an employee record that is stored in Oracle Human Capital Management, for example when an Employee Status changes from Active to Inactive.

Our solution was to use an Oracle Process Cloud Service process to perform the metadata updates when certain values were passed into the process. The reason for updating the metadata is so that accurate searches can be performed by end users. The tricky part of the implementation is how to call the PCS process based on the change. To accomplish this Informatica is used to determine a ‘change’ based on data from the tables within the HCM structure and then pass that change record to a DB table used by the client solution. At that point a database function was developed to action the PCS REST Web Service. The final step of the process was to build a database trigger that called the function.

First you need to do some initial setup to be able to use the APEX libraries as well as create the network ACL to connect to the PCS domain you’re using. You can find this information in various places online. You can either use SOAP or REST web services and we chose REST. If you want to call the web service using SSL (which we did) you’ll have to also create an Oracle wallet.

CODE SNIPPETS

Function Definition:

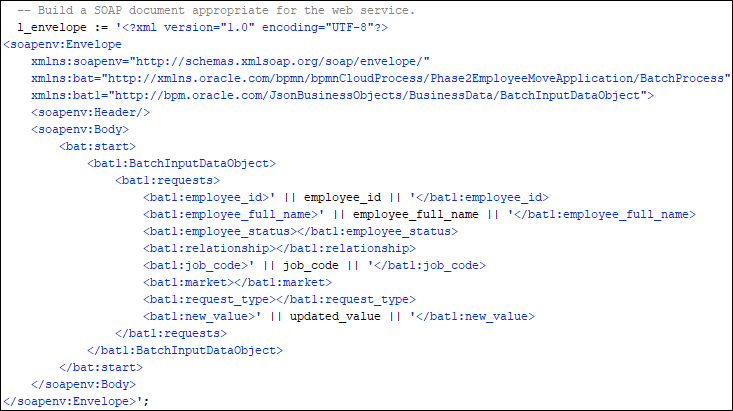

SOAP Envelope:

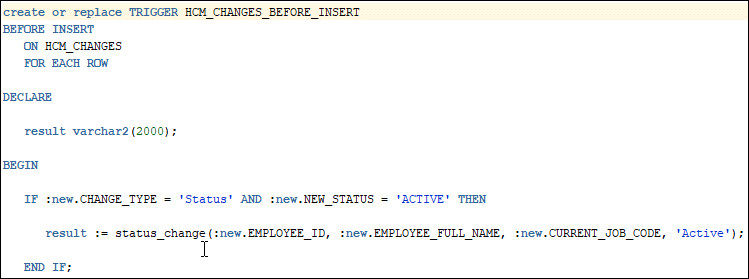

Call the Function from a Trigger:

SUMMARY

There are more than one ways to fulfil this customer requirement but these are the pieces that worked well in this case. If you have any additional integration needs between Oracle Human Capital Management and Oracle Content and Experience Cloud please contact TekStream and we’d be happy to assist you.
